Create a Calendar Chart – Part 1

10/20/2023

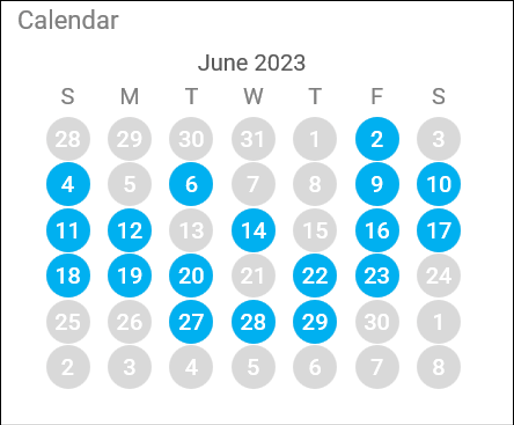

Create a progress chart that looks like a calendar and shows which days a task was completed.

This type of chart is helpful for any type of personal habits, like tracking fitness goals. It's also great for business use. You can track attendance, sales goals, or other achievements that can be reached daily.



Download the Excel Files

You can follow along using the BEGIN file or go straight to the end result using the FINAL file.

8 Types of Progress Charts – Calendar Chart Explained – Part 1 – BEGIN.xlsx Download

8 Types of Progress Charts – Calendar Chart Explained – Part 1 – FINAL.xlsx Download



Creating a Calendar Chart

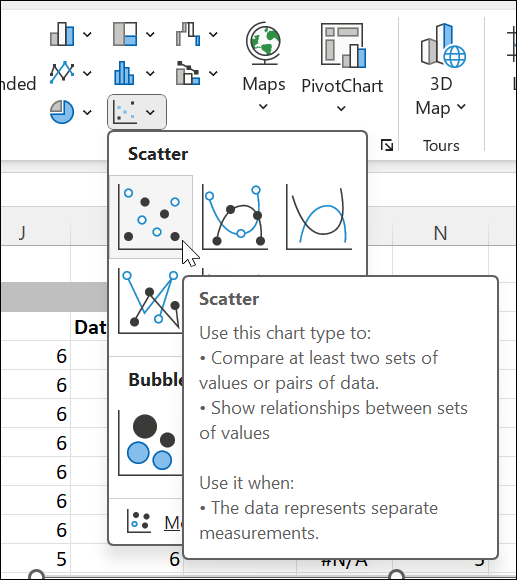

The calendar chart begins as an X-Y scatter chart. So start by selecting the X and Y data in the spreadsheet provided at the top of this post. With that data selected, go to the Insert tab and choose the first option in the Scatter chart menu, which is an X-Y scatter chart.

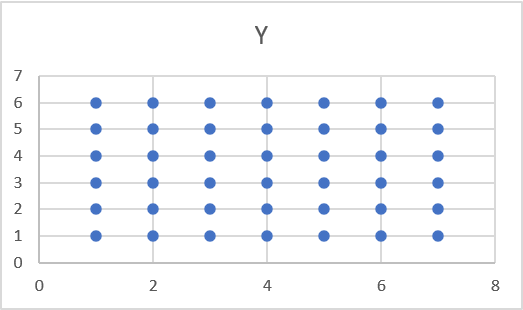

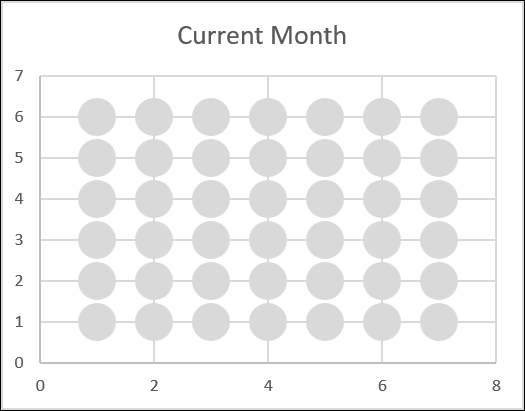

When you do, a chart like this will appear:

The X and Y data that we highlighted is what creates the 6 rows and 7 columns of the chart.



Format the Chart

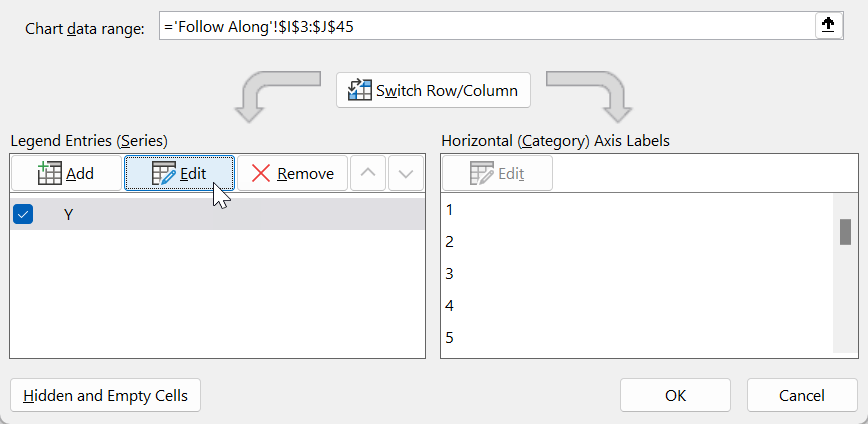

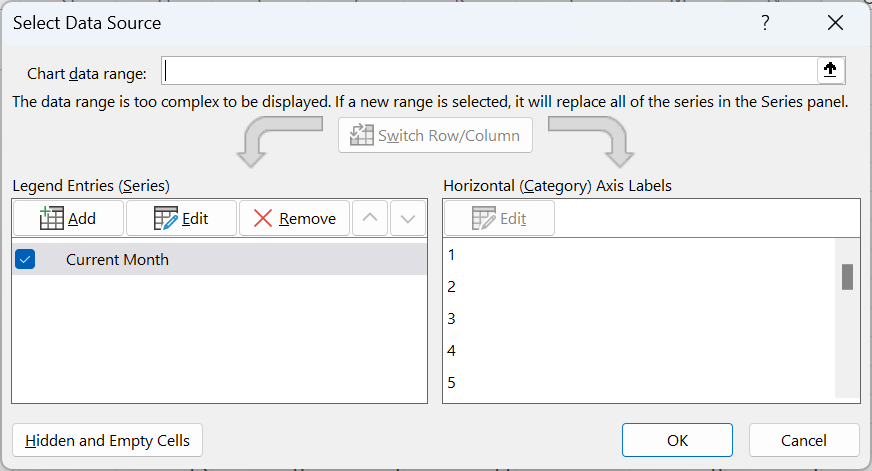

With the chart selected, go to the Chart Design tab and click Select Data. That will open up this window.

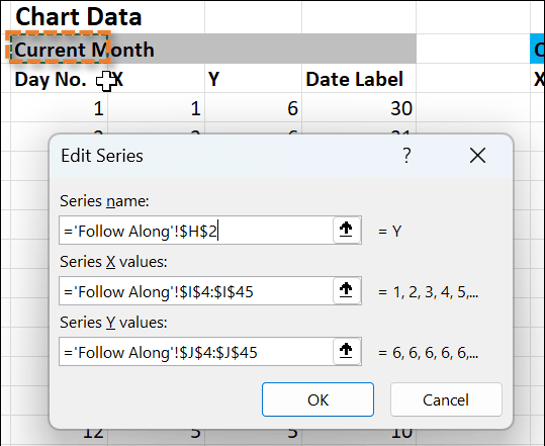

Click on Edit to rename the series by clicking on the cell that says Current Month.

Then hit OK.

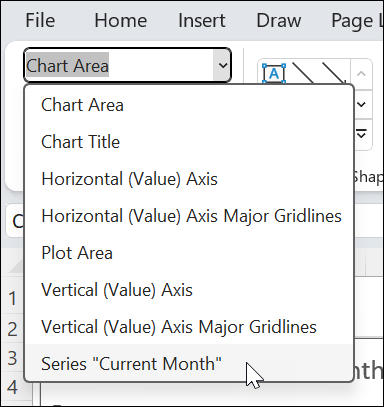

Now let's format the dots. With the chart selected, go to the Format tab and choose Series “Current Month” from the dropdown.

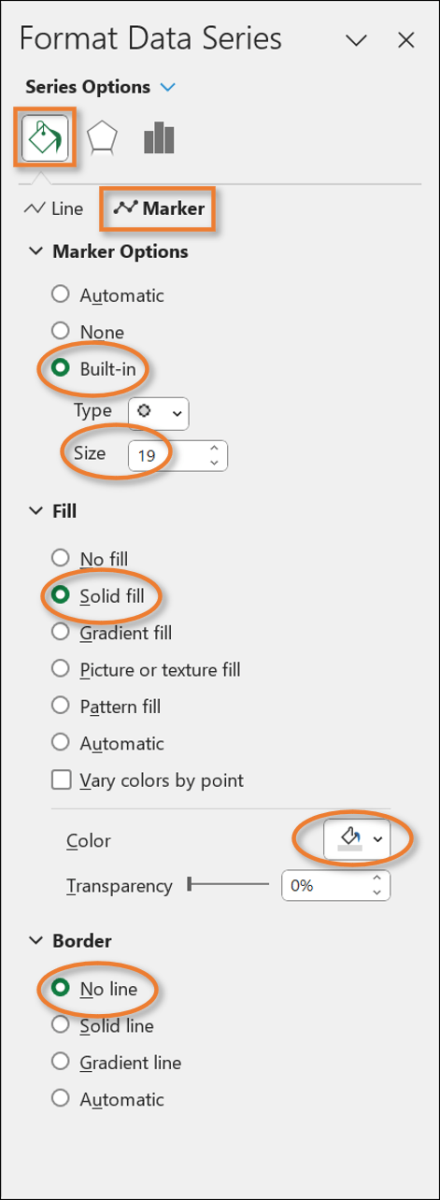

Then click Format Selection in the Ribbon to open up the task pane to the right of your worksheet. Under the Fill & Line options, go to the Marker section and choose the following options:

• Marker Options: Built-In
• Size: 19
• Fill: Solid Fill
• Color: Light Grey
• Border: No Line

Your chart should be looking something like this now.



Add Data Labels

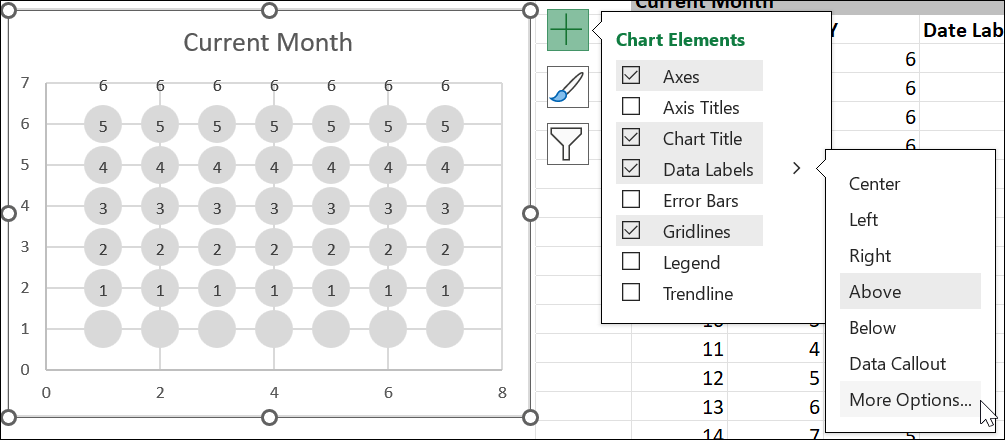

Next, we want to add the numbers to the dots representing the days of the month. With the chart selected, click on the plus sign (+) that appears near the right-top corner of the chart. Select Data Labels, and then More Options.

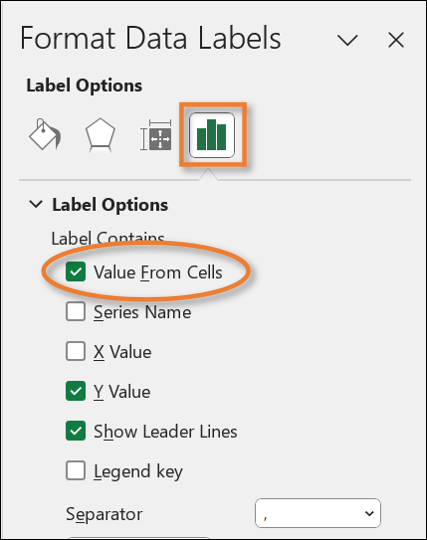

In the task pane on the right, go to the Label Options. Click the checkbox that says Value From Cells.

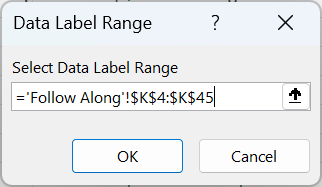

That will open a box for you to choose your data label range. Select the range from the Date Label column in the data.

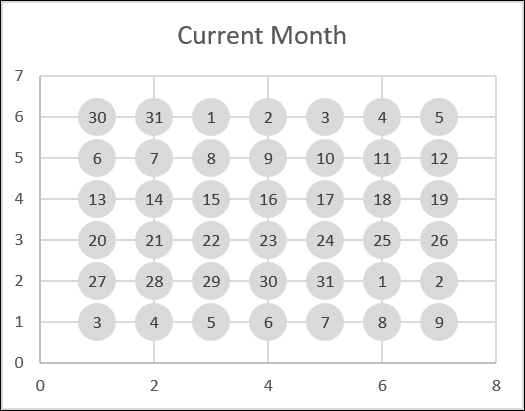

In the task pane, uncheck the boxes for Y Value and Show Leader Lines. You'll also want to Center the Label Position. Your chart will now look like this:

These data labels are dynamic. That means if I change the calendar start date, all of the subsequent dates for the month will be updated as well, thanks to the formula I've written in the data.



Adding the Colored Days

Now that we have the grey dots for each day of the calendar, we can overlay our colored dots for days where we want to show our progress.

In the data, I've used a COUNTIF formula to look for dates where we have entered “Yes,” indicating our goal for that date was met. If it finds a Yes, it will return the value equal to that date and plot a dot on that date in the chart. If it doesn't find a Yes, it will return an #N/A error and no dot will be plotted.

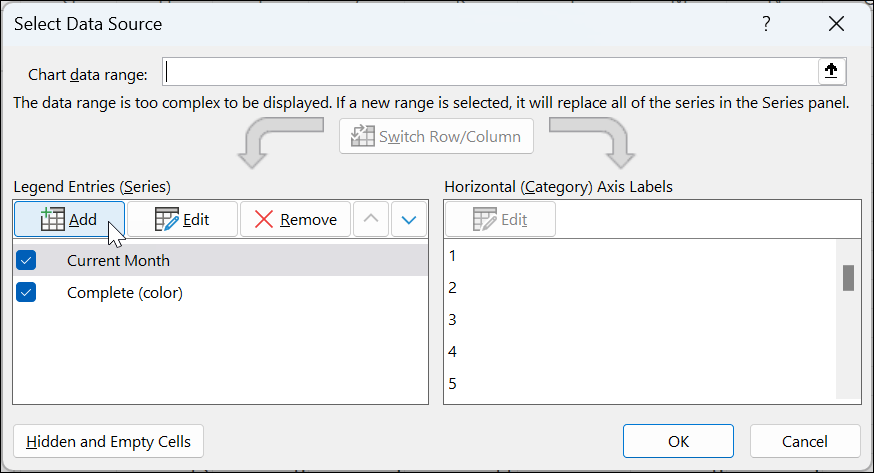

To add the colored dots, start by selecting the chart and going to the Chart Design tab. Choose Select Data. Then click the Add button in the Select Data Source window.

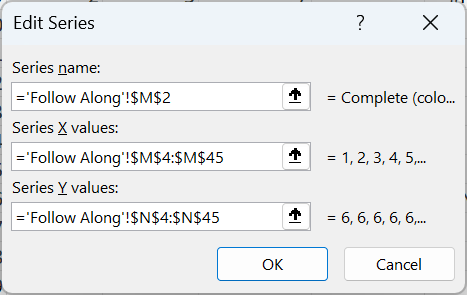

For Series Name, choose the cell that says Complete (color). The Series X values will be the range of data under the X. For the Series Y values, select the range of data under the Y.

Hit OK, and then OK again, and you will see that your chart has small colored dots overlaying some of the grey ones. We just need to format these dots.

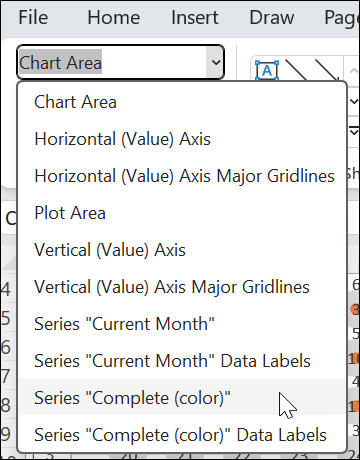

Choose the Series “Complete (color)” on the Format tab.

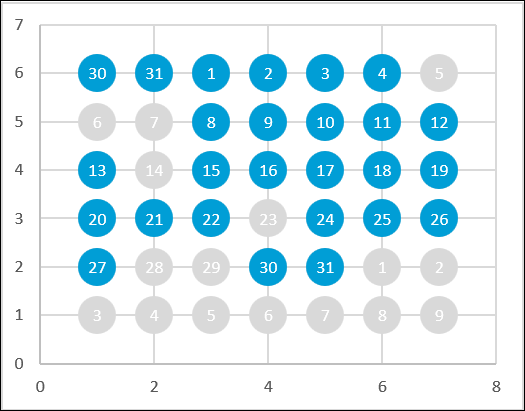

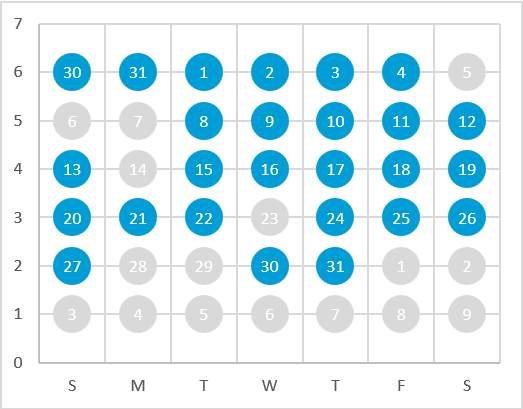

Then, in the task pane, select all of the same options as before, but use a different color. Now your chart looks like this:

If you like, you can change the font color of the data labels to appear white instead of black.



Adding Days of the Week

Now let's add initials for the days to the top of the chart. With the chart selected, go to the Chart Design tab, hit the Select Data button, and choose Add under Legend Entries.

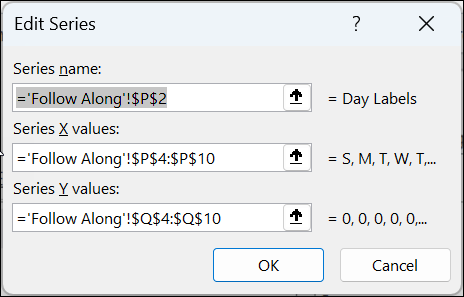

For the Series name, select the cell that says Day Labels. The Series X values should be the data in the Day Label column. For the Series Y values, select the data in the Value column.

This doesn't look like it does much to the chart, but once we change the chart type, it will make more sense. With the chart selected, go to the Chart Design tab, and hit Change Chart Type.

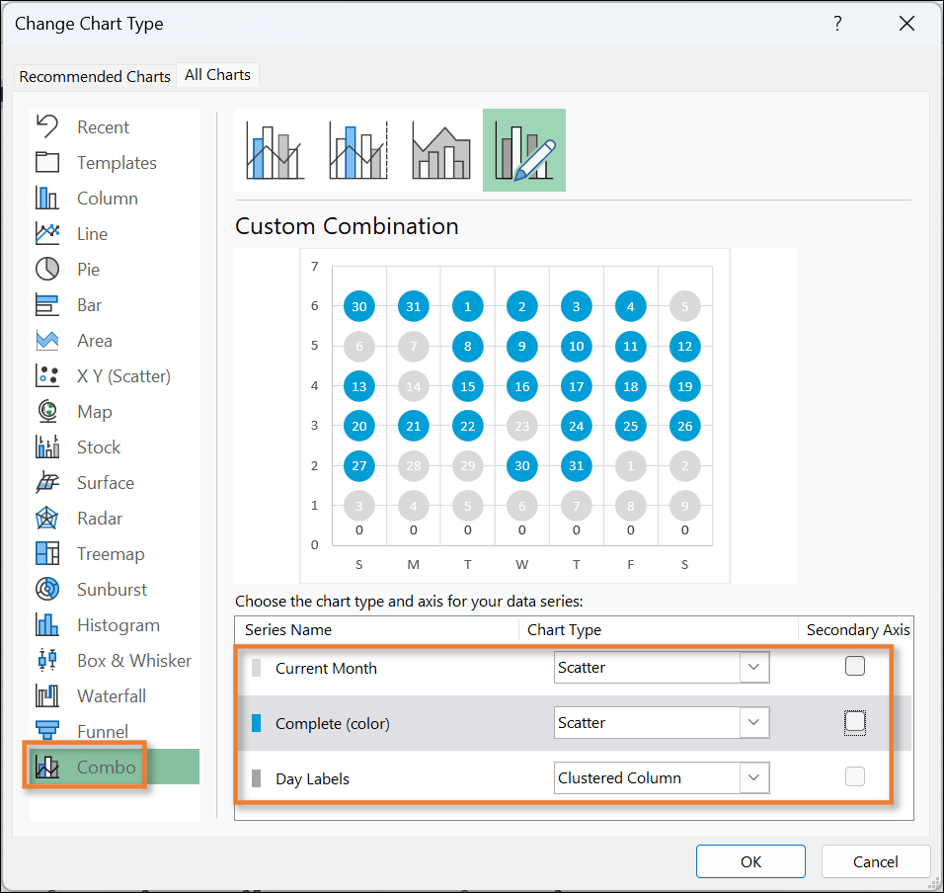

In the Change Chart Type window, select Combo in the left menu, and then these settings:

• Current Month: Scatter
• Complete (color): Scatter
• Day Labels: Clustered Column

You also want to uncheck any of the Secondary Axis boxes that are checked.

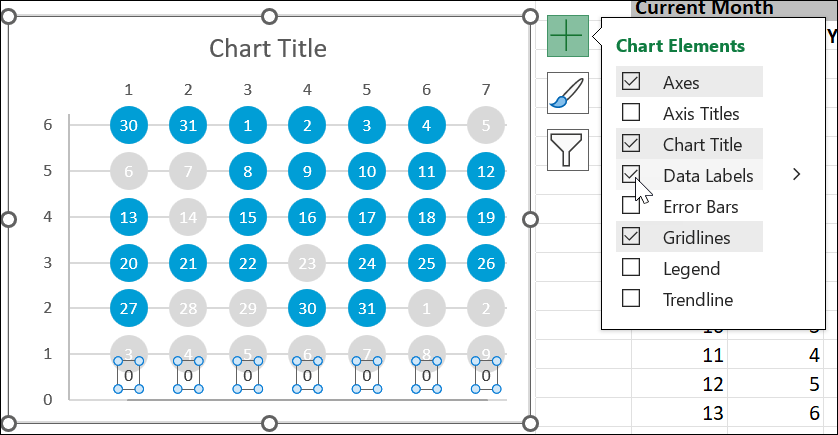

If, as in the image above, your chart shows zeros along the bottom, just above the Day Labels, you can click on that series and then uncheck the box for Data Labels to make them go away.

Your chart now looks like this:



Moving the Day Labels

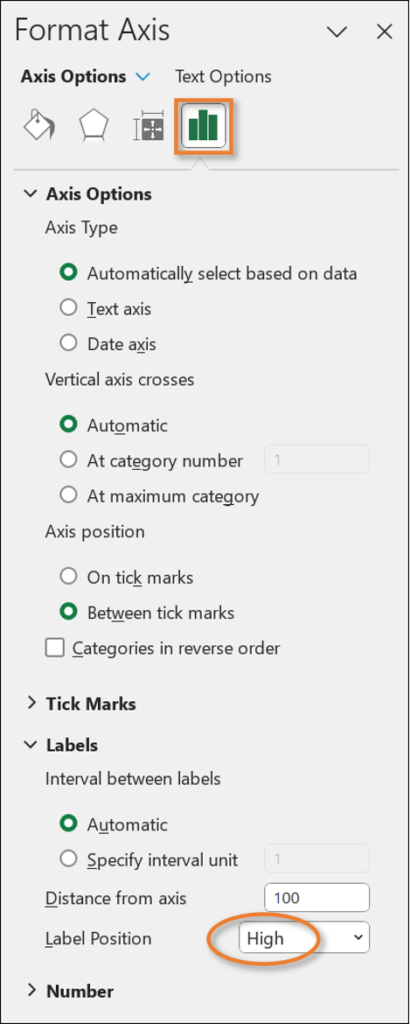

To move those days of the week to the top, select that data series and then choose the High setting for the Label Position in the task pane.

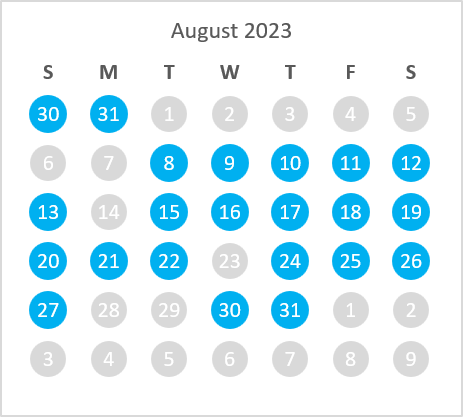

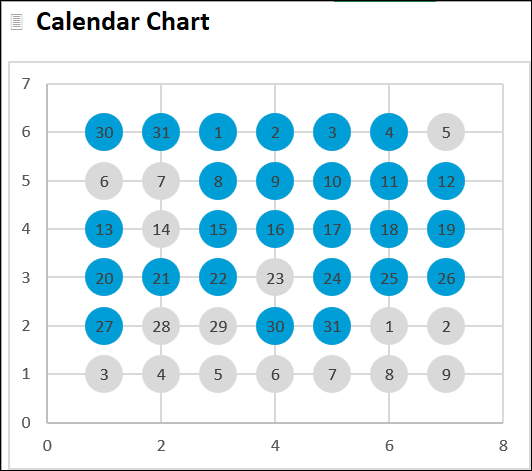

You can remove the Axes and Gridlines, and also the line around the chart, if you wish. Next, you want to add a chart title by checking the Chart Title box in the menu and then linking it to the chart title in the data. Here's your final result!

You are welcome to copy this chart and all of its data into your own workbooks so that you don't have to build it from scratch. When you do, you'll either have to adjust the data in the yellow columns or point the COUNTIF formula to your existing data, wherever it resides.
